KES 102,000

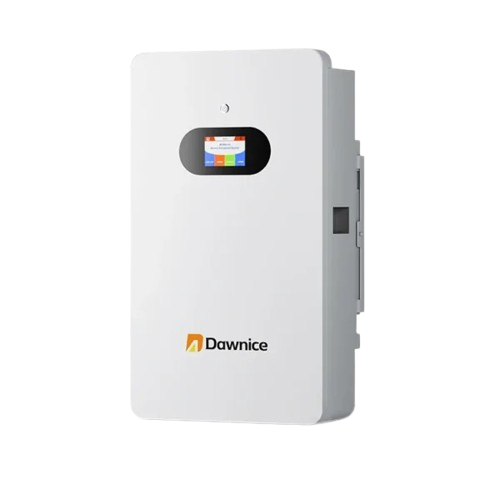

● In StockThe HZEB-LCT-5 is a space-saving, intelligent home energy system powered by cutting-edge 51.2V 100Ah 5kW LiFePO4 battery technology. It allows homeowners to lower utility costs and maximize solar self-consumption while ensuring dependable backup power.
🔒 Secure Payments
M-Pesa Supported
🚚 Fast Delivery
Across Kenya
🛡 Warranty
Guaranteed cover
Energy Storage Battery
Wall-mounted / Ground-mounted
5KWH/10KWH/16KWH/20KWH
Remote fault diagnosis, system upgrades, maintenance and real-time monitoring from anywhere.
OCV intelligent algorithm calibration ensures precise SOC accuracy and battery optimization.
Designed to withstand harsh weather, dust, heavy rain and demanding outdoor environments.
Modular architecture supports up to 15 batteries connected in parallel.
| Model | HZEB-LCT-5 | HZEB-LCT-10 | HZEB-LCT-16 | HZEB-LCT-20 |
|---|---|---|---|---|
| Battery Type | LiFePO₄ | LiFePO₄ | LiFePO₄ | LiFePO₄ |
| Nominal Voltage | 51.2V | 51.2V | 51.2V | 51.2V |
| Capacity (Ah) | 100Ah | 206Ah | 314Ah | 410Ah |
| Nominal Energy | 5.12kWh | 10.54kWh | 16.07kWh | 20.99kWh |
| Usable Energy | 4.61kWh | 9.49kWh | 14.47kWh | 18.89kWh |
| Max Charge/Discharge | 100A | 100A | 150A | 200A |
| Cycle Life | 6000+ | 6000+ | 8000+ | 6000+ |
| Cumulative Discharge Capacity | 8.2MWh | 16.9MWh | 25.8MWh | 33.7mwh |
| Warranty | 5 + 5 Years | 5 + 5 Years | 5 + 5 Years | 5 + 5 Years |
| PRODUCT DETAILS | ||||
|---|---|---|---|---|
| Weight | 59kg | 83.5kg | 127kg | 180kg |
| Dimension(W*D*H) | 400*160*700mm | 460*245*640mm | 460*245*800mm | 650*265*850mm |
| Installation Method | Wall/Ground Mounted | Wall/Ground Mounted | Wall/Ground Mounted | Wall/Ground Mounted |
| IP Rating | IP54 | IP54 | IP54 | IP21 |
| SECURITY AND CERTIFICATION | ||||
|---|---|---|---|---|
| Safety(Pack) | UN38.3,MSDS,IEC62619(CB),CE-EMC,IEC63056 | |||
| Safety(Cell) | UN38.3,MSDS,IEC62619,CE,UL1973,UL2054 |
| ENVIRONMENTAL SPECIFICATIONS | ||||
|---|---|---|---|---|
| Operating Temperature Range(℃) | Charge 0℃~55℃;Discharge-20℃~55℃ | |||
| Altitude(m) | ≤2000m | |||
| Humidit | ≤90%(Non-condensing) |
