KES 479,000

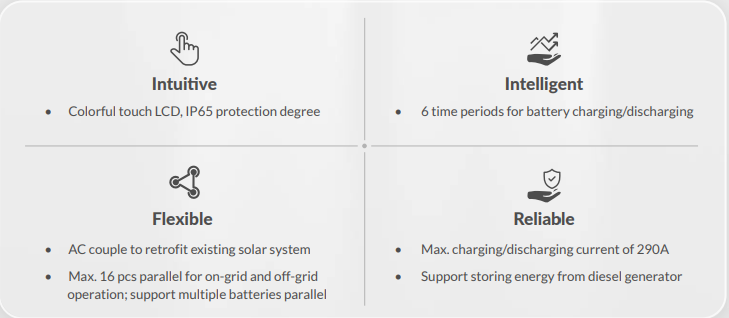

● In StockThis system features a color touch LCD with IP65 protection for durability in harsh environments, supports 6 configurable time periods for battery charging and discharging, and offers a maximum charge/discharge current of 290A. It can store energy from a diesel generator, supports AC coupling for upgrading existing solar systems, allows up to 16 units in parallel for both on-grid and off-grid operation, and also supports multiple batteries connected in parallel for increased capacity and flexibility.
🔒 Secure Payments
M-Pesa Supported
🚚 Fast Delivery
Across Kenya
🛡 Warranty
Guaranteed cover
SUN-12/14/16K-SG01LP1-EU
| Model | SUN-12K-SG01LP1-EU | SUN-14K-SG01LP1-EU | SUN-16K-SG01LP1-EU |
|---|---|---|---|
| Battery Input Data | |||
| Battery Type | Lead-acid or Lithium-ion | ||
| Battery Voltage Range (V) | 40-60 | ||
| Max. Charging/Discharging Current (A) | 220 | 250 | 290 |
| Charging Strategy for Li-ion Battery | Self-adaption to BMS | ||
| Number of Battery Input | 2 | ||
| PV String Input Data | |||
| Max. PV Access Power (W) | 24000 | 28000 | 32000 |
| Max. PV Input Power (W) | 19200 | 22400 | 25600 |
| Max. PV Input Voltage (V) | 500 | ||
| Start-up Voltage (V) | 125 | ||
| MPPT Voltage Range (V) | 150-425 | ||
| Rated PV Input Voltage (V) | 370 | ||
| Max Operating PV Input Current (A) | 32+32+32 | ||
| Max Input Short Circuit Current (A) | 60+60+60 | ||
| No. of MPP Trackers / Strings | 3 / 2+2+2 | ||
| AC Input / Output Data | |||
| Rated AC Input/Output Active Power (W) | 12000 | 14000 | 16000 |
| Max. AC Input/Output Apparent Power (VA) | 13200 | 15400 | 17600 |
| Rated AC Input/Output Current (A) | 54.5/52.2 | 63.6/60.9 | 72.7/69.6 |
| Max AC Input/Output Current (A) | 60/57.4 | 70/67 | 80/76.5 |
| Max Continuous AC Passthrough (A) | 100 | ||
| Peak Power (Off-grid) | 2 times rated power, 10s | ||
| Power Factor Adjustment Range | 0.8 leading to 0.8 lagging | ||
| Rated Input/Output Voltage | 220/230V 0.85Un-1.1Un L+N+PE | ||
